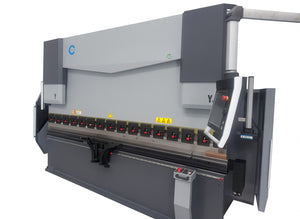

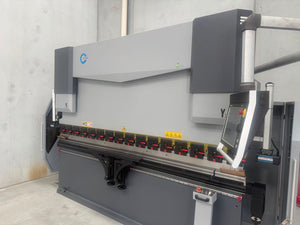

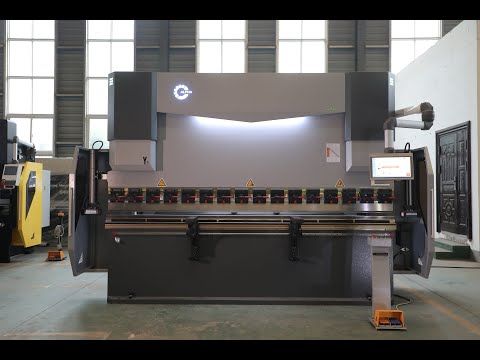

HPB Series CNC Press Brake

ALPHA design innovations are based on years of experience and have resulted in HPB series Press Brakes which allow for faster bending, and a better return and back gauge. Alpha Press Brakes will allow you to mass produce precision parts effectively and decrease your running cost.

REQUEST A QUOTE Brochure
Features
  • DELEM DA58T 2D graphical operator control

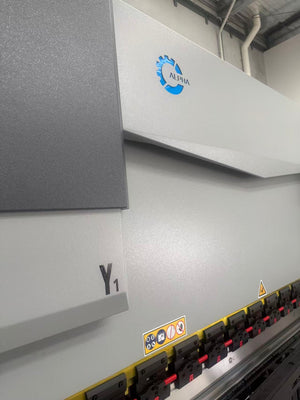

  • YI/Y2 synchro pressbrake

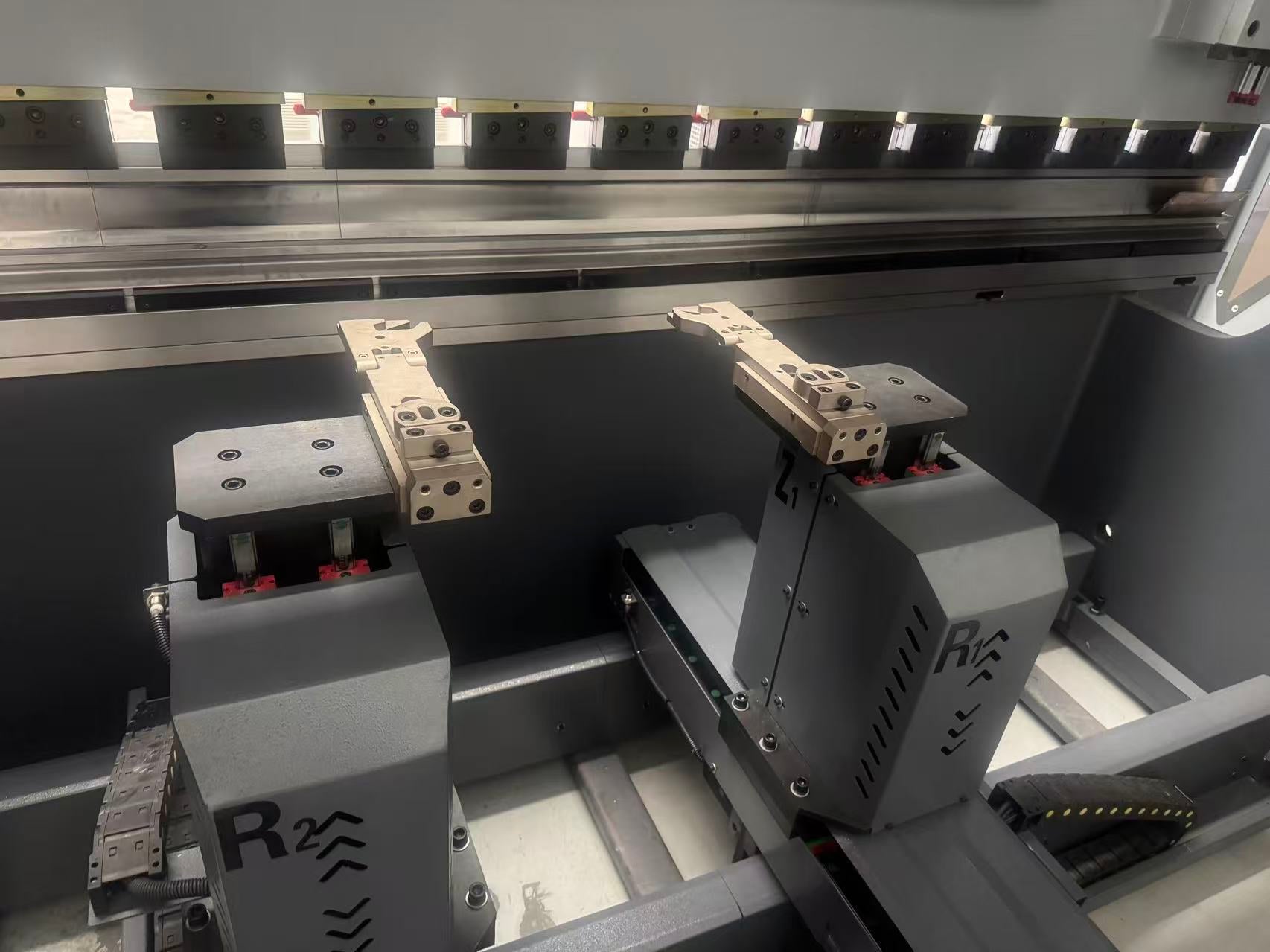

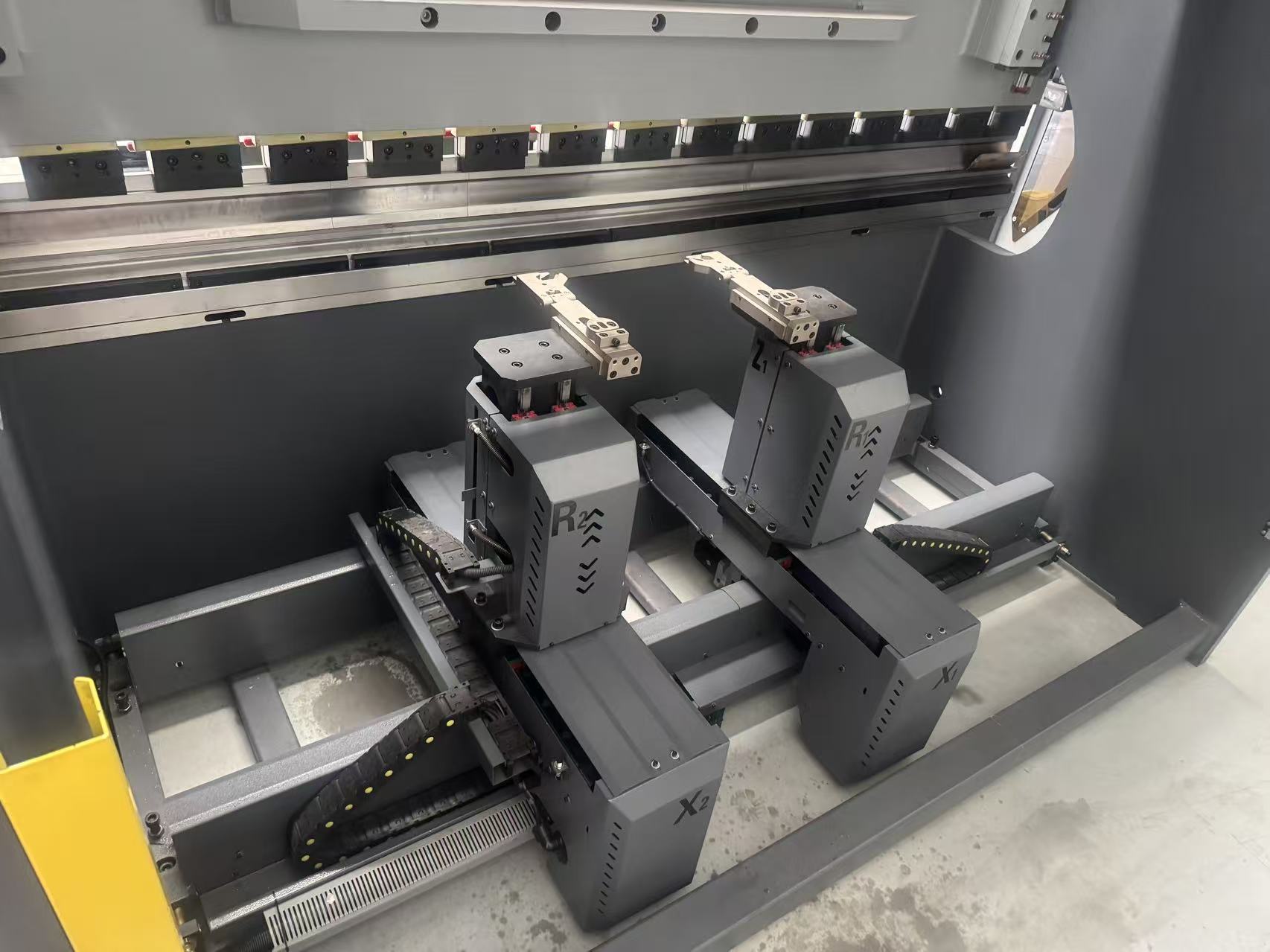

  • X - Axis backgauge , programmable in 0.01mm increments
  • CNC controlled hydraulic Anti deflection table (crowning)
  • Programmable, angle, depth and TDC positioning

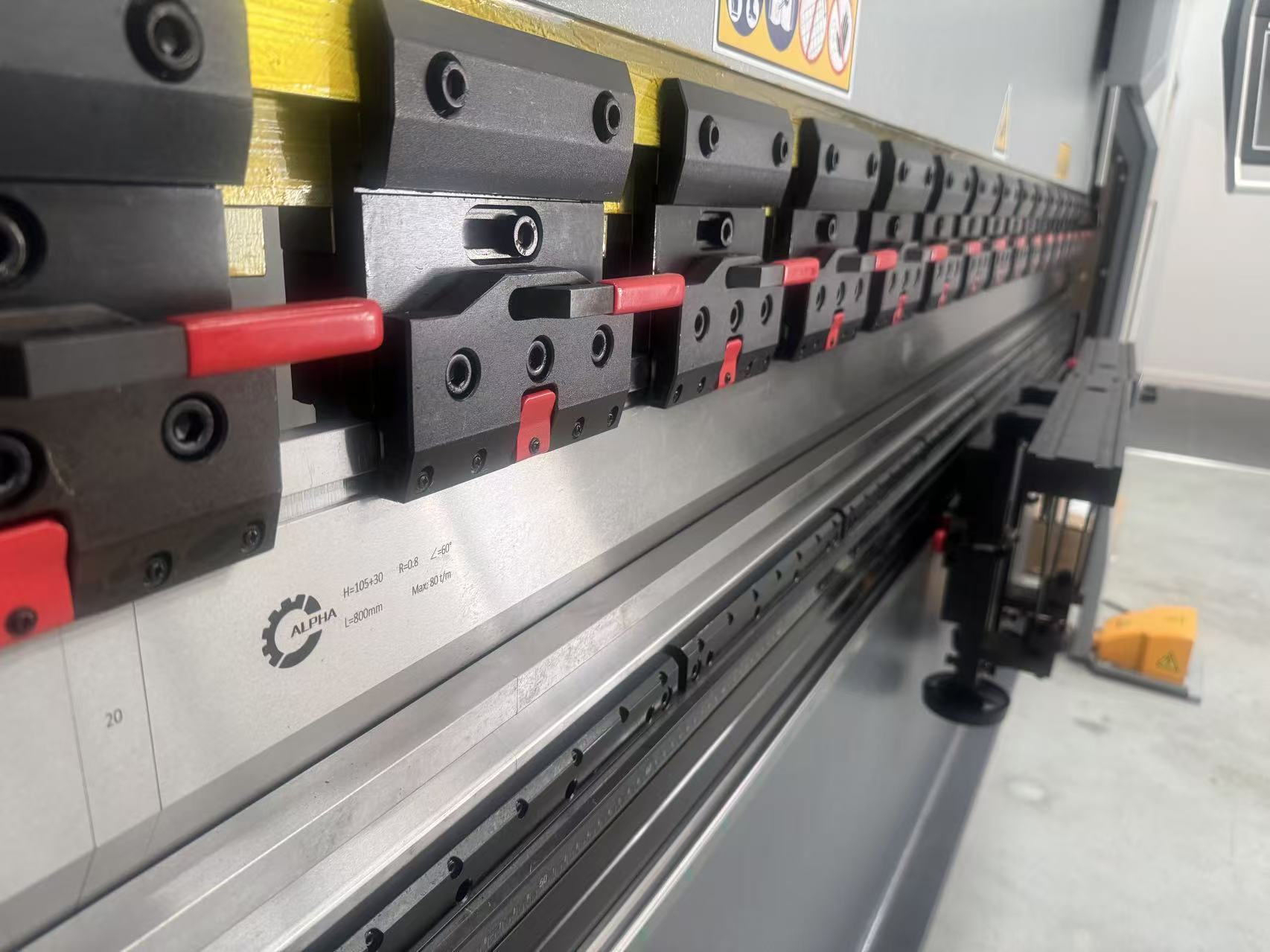

  • European style quick release clamping for top tools
  • Full set of top and bottom tooling
  • 2 Front supports
  • CE Safety specification
Options
  • SNC 56 CNC system

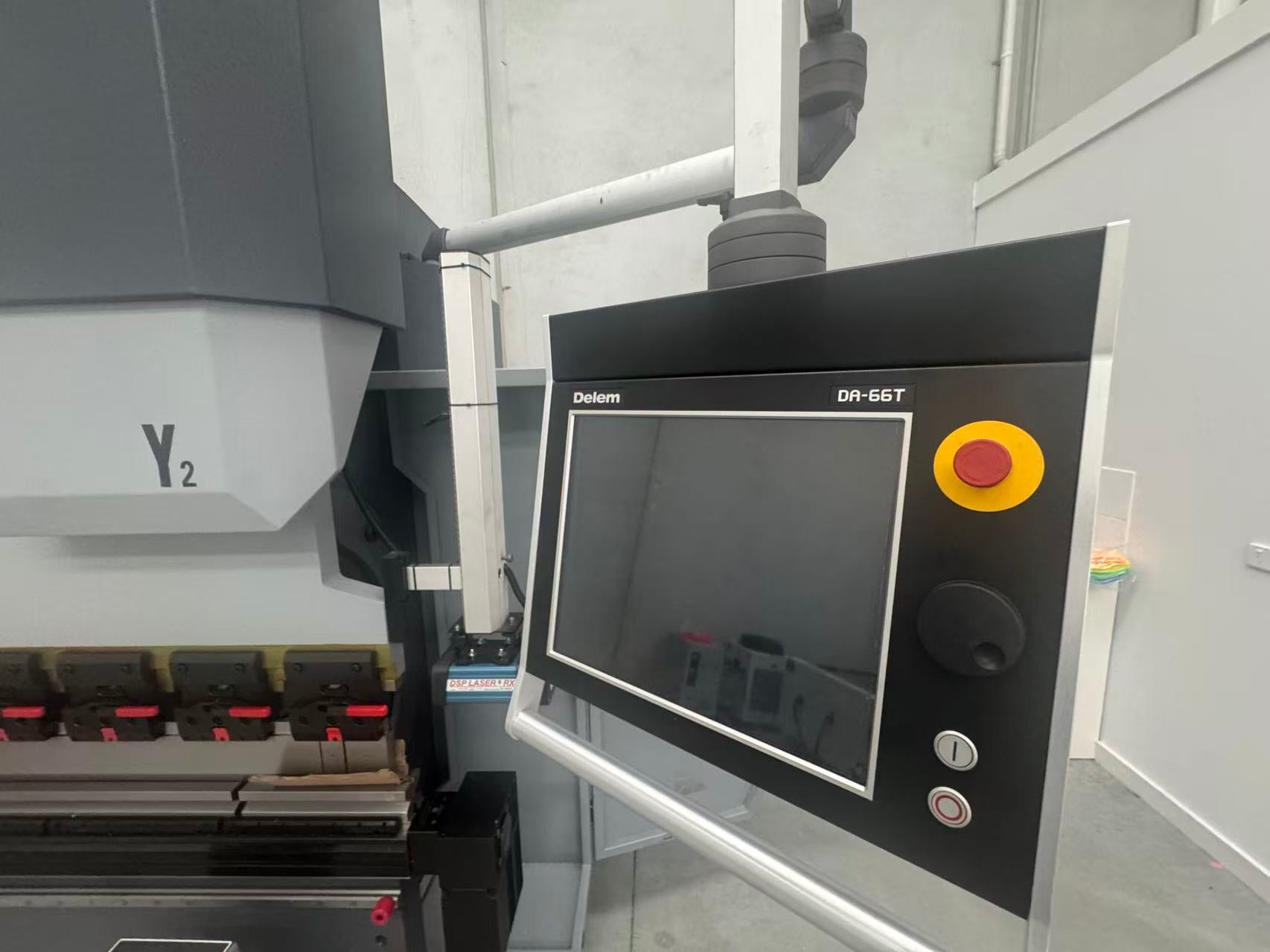

  • DELEM DA66T CNC System
  • Backgauge X-R or X-R-Z1/Z2

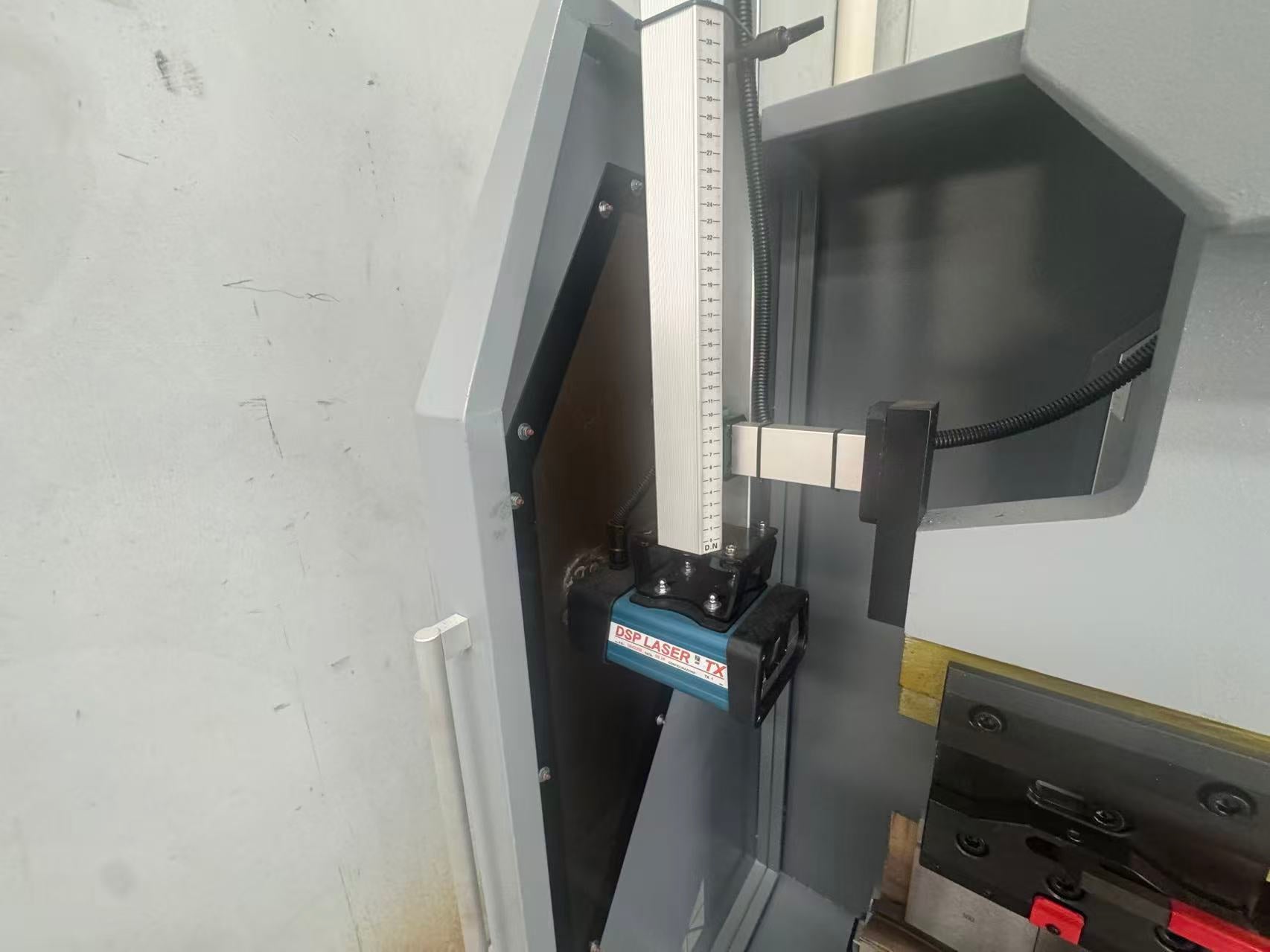

  • DSP Optical Safety Guard
  • 1000mm backgauge stroke
Specifications
Model Bending Length (mm) Bending Capacity (kN) Distance Between Side Frames (mm) Gap (mm) Daylight Opening (mm) Stroke (mm) Table Height (mm) Table Width (mm) Fast Approach Speed (mm/s) Max Bending Speed (mm/s) Return Speed (mm/s) Motor Power (kW) Length (mm) Width (mm) Height (mm) Weight (kg) Backgauge Stroke (mm)
HPB 1563 1500 630 1100 370 350 200 870 80 200 10 160 5.5 1825 1650 2600 4600 750
HPB 2563 2500 630 2060 370 350 200 870 80 200 10 160 5.5 2825 1650 2430 5600 750
HPB 32110 3200 1100 2700 400 430 200 940 100 200 10 160 7.5 4200 1800 2630 8000 750
HPB 40110 4000 1100 3300 400 430 200 940 100 200 10 160 7.5 4800 1800 2700 9500 750
HPB 32135 3200 1350 2700 400 430 200 940 100 200 10 160 11 4200 1800 2660 8800 750
HPB 40135 4000 1350 3300 400 430 200 940 100 200 10 160 11 4800 1900 2700 10000 750
HPB 32175 3200 1750 2700 400 430 200 940 100 180 10 140 11 4200 1900 2700 10000 750
HPB 40175 4000 1750 3300 400 430 200 940 100 180 10 140 11 4500 1900 2750 12000 750
HPB 32220 3200 2500 2700 400 470 200 950 140 180 10 140 18.5 4200 1800 2900 15000 750
HPB 40220 4000 2200 3300 400 470 200 1050 140 180 10 140 18.5 5000 1800 3000 17000 750
HPB 32250 3200 2200 2700 400 500 250 1080 180 160 10 140 22 4300 2000 3180 16000 750
HPB 40250 4000 2500 3300 400 500 250 1080 180 160 10 140 22 4900 1730 3180 18000 750
HPB 30300 3200 3000 2700 400 560 300 1160 180 120 8 85 22 4300 2150 3360 20000 750
HPB 40300 4000 3000 3300 400 560 300 1160 180 120 8 85 22 4900 2150 3360 20000 750
HPB 50300 5000 3000 4050 400 4560 300 1180 180 120 8 85 18.5 5300 2250 3320 26000 750
HPB 40400 4000 4000 3300 450 400 320 880 200 120 8 80 30 4300 2200 3580 27000 750
HPB 50400 5000 4000 4050 450 400 320 880 200 100 8 80 30 5300 2250 3600 32000 750
HPB 60400 6000 4000 5050 450 400 320 880 200 100 8 80 30 6400 2300 3670 38000 750
HPB 60500 6000 5000 5050 450 610 320 990 300 100 8 75 37 6500 2700 5000 55000 1000
HPB 60600 6000 6000 5050 450 650 320 990 300 80 8 80 40 6500 2700 5000 65000 1000
